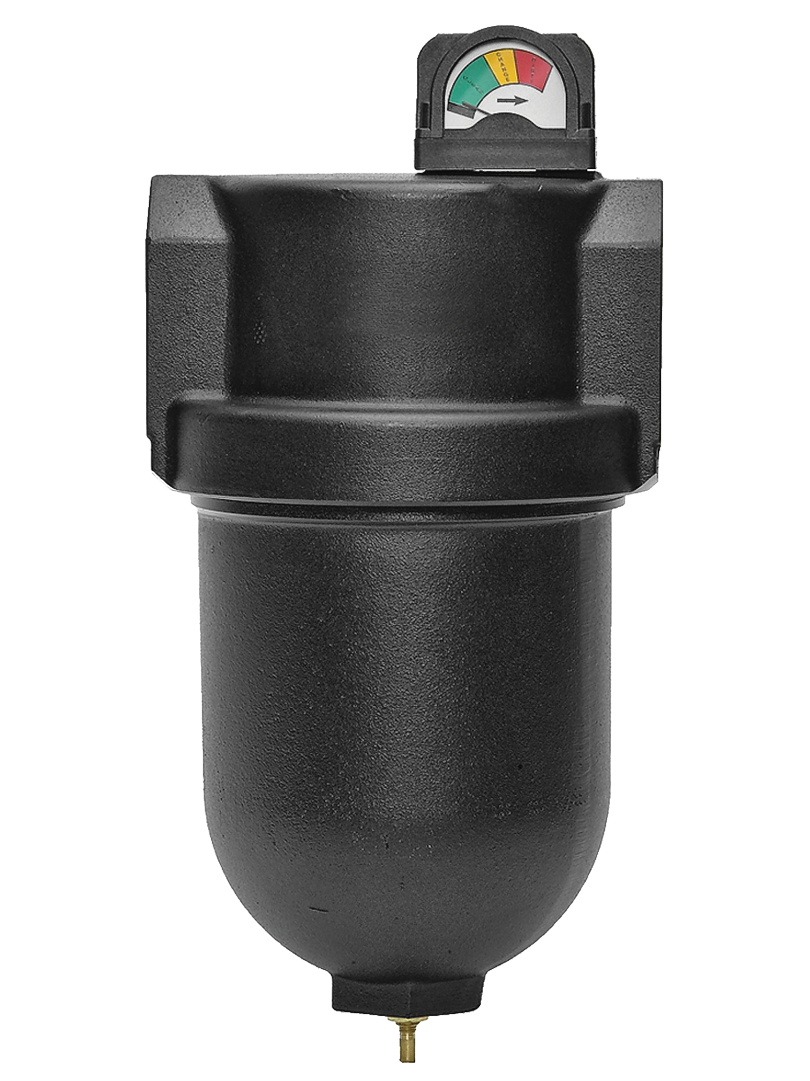

High Capacity Series C5X00B5099
- Inline mounting
- 0.3 micron rated filter element, or 0.01-micron rated filter element
- Differential pressure gauge
- High-strength polycarbonate plastic filter bowl with steel shatterguard, aluminum bowl with clear nylon sight glass, or extended aluminum bowl
- Automatic drain, or manual drain
Product Information
| PORT SIZE | 3/4 |
| PORT THREAD | BSPP |
| FILTER TYPE | 0.3 µm |
| DRAIN TYPE | Automatic |
| BOWL TYPE | Polycarbonate |
| BOWL SIZE | 16 oz (480 ml) |
| FILTER MATERIAL | Borosilicate Glass |
| PORT TYPE | Threaded Ports |
| GAUGE | Large Dual Face |
| MOUNTING | Inline |
| MAXIMUM FLOW | 195 scfm |
| FLOW MEDIA | Compressed Air |
| INLET PRESSURE RANGE | 15 to 150 psig (1 to 10 bar) |
| AMBIENT TEMPERATURE RANGE | 40 to 125 F (4 to 52 C) |
| MEDIA TEMPERATURE RANGE | 40 to 125 F (4 to 52 C) |
+
High Capacity Series
C5X00B5099
Contact Us for a 3D Model
+
High Capacity Series
C5X00B5099
Contact ROSS EUROPA for Ordering Information
+
