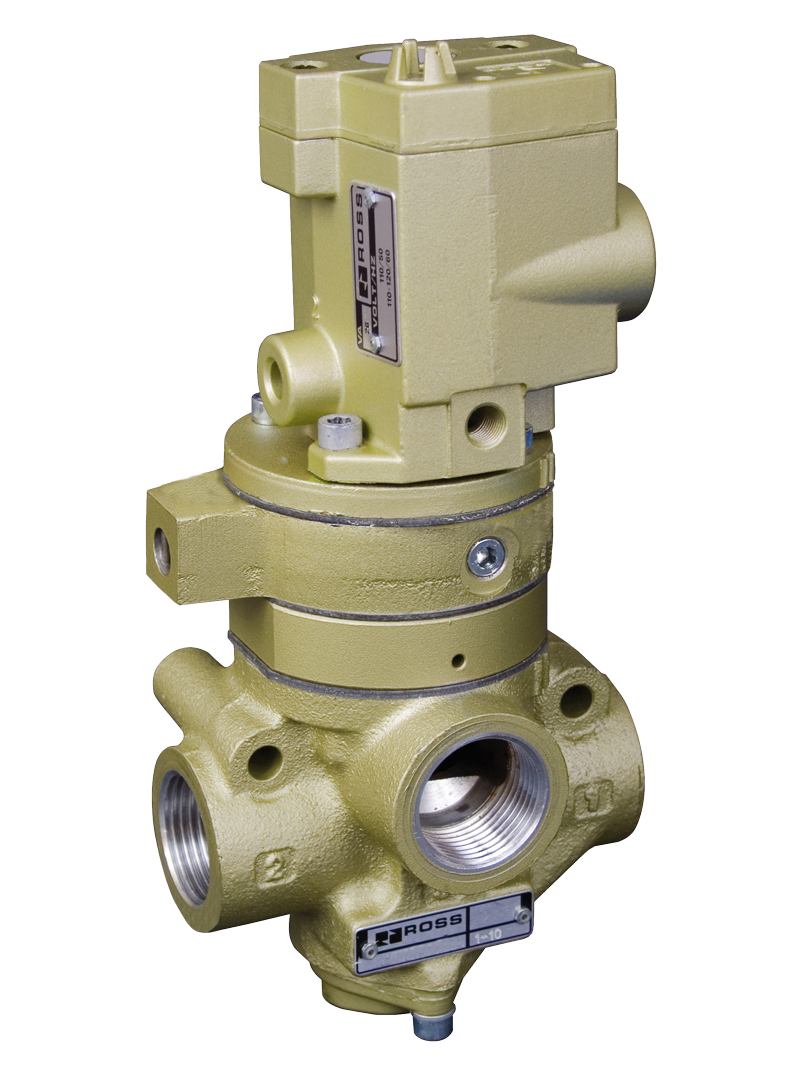

27 Series Soft Start EEZ-ON Valve D2773B2037Z
- Dirt tolerant, wear compensating for quick response and high flow capacity
- Gradual re-application of pneumatic pressure prevents rapid equipment movement at startup
- Pressure buildup control an adjustable restriction within the EEZ-ON® valve determines the rate of downstream pressure buildup, and consequently the time delay for the full opening of the EEZ-ON® valve
- Full size exhaust ports (equal to or larger than supply) provide rapid exhaust of downstream air and are threaded for silencers or remote exhaust lines
- Flush flexible, non-locking manual overrides are standard on single solenoid models
Product Information
| Valve Type | Soft-Start |
| Series | 27 |
| Actuation | Electrical |
| Function | 3/2 Single Solenoid |
| Voltage | 110/120 VAC |
| Thread Type | G |
| Body Size | 3/8" |
| Length | 4.19 in (106 mm) |
| Width | 3.15 in (77 mm) |
| Height | 8.80 in (224 mm) |
| Weight | 4.5 lb (2.0 kg) |
| Inlet Size | 1/4" |
| Outlet Size | 1/4" |
| Exhaust Size | 1/2" |
| Construction | Spool |
| Mounting | Inline |
| Ports 1-2 Flow | 2.5 Cv (2460 Nl/min) |
| Ports 2-3 Flow | 3.1 Cv (3050 Nl/min) |
| Ambient Temperature | 40 to 120F (4 to 50C) |
| Media Temperature | 40 to 175F (4 to 80C) |
| Fluid Media | Filtered Air |
| Operating Pressure | 15 to 150 psig (1 to 10 bar) |
| Valve Body Material | Cast Aluminum |
| Spool Material | Acetal and Stainless Steel |
| Seal Material | Buna-N |
| Safety Category | Category 1 |
| PL Rating | PL c |
| Safety Integrity Level | SIL 2 |
+
