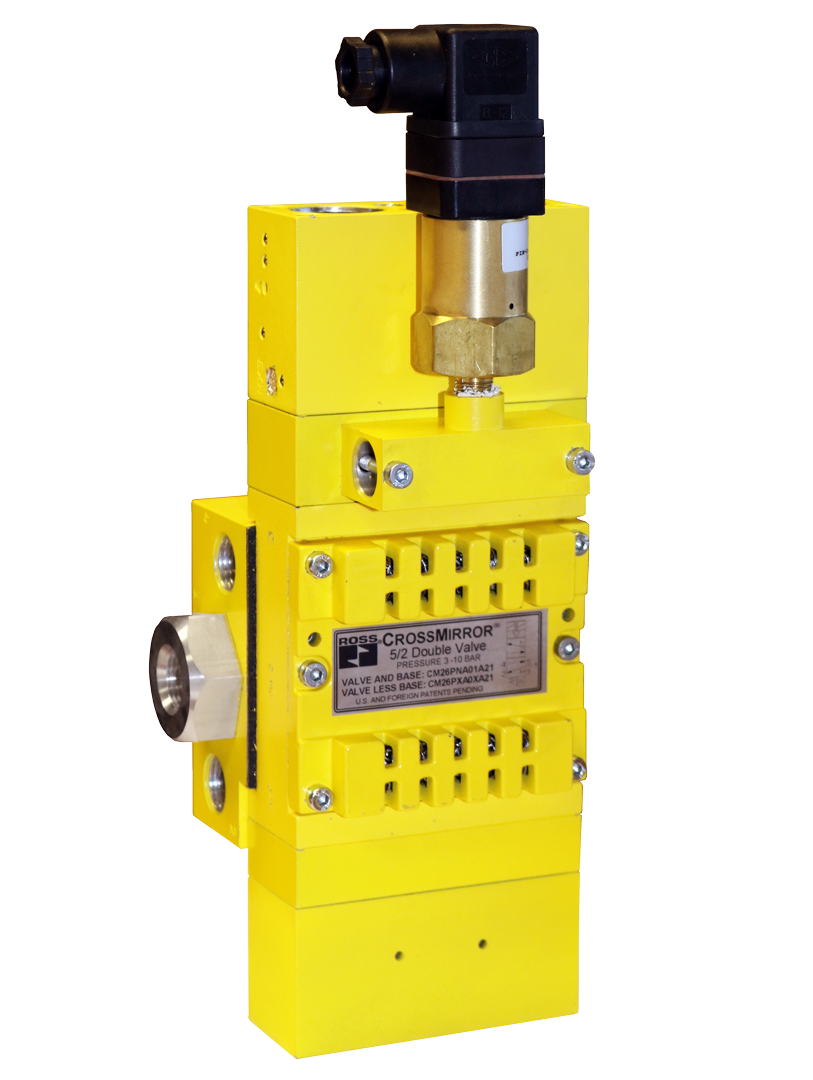

CrossMirror CM26 Series Double Valves CM26PDA00P1X
- Self-contained dynamic monitoring system requires no additional valve monitoring controls
- Dedicated reset; requires an overt act to reset unit after lockout
- Dual stainless steel spools construction
- Status indication switch (ready-to-run) to inform machine controller of valve condition
- The Pressure switch provides a signal when valve is in a faulted position
- Base mounted; manifoldable for multi-valve applications
- SISTEMA Library available for download
Product Information
| Series | CM26 |
| Valve Function | Dual 5/2 Single Pilot |
| Base Size | 0 |
| Length | 9.03 in (229.3 mm) |
| Width | 4.74 in (120.4 mm) |
| Height | 3.35 in (85.1 mm) |
| Weight | 5.60 lb (2.54 kg) |
| Actuation | Pneumatic |
| Thread Type | G |
| Inlet Size | 1/4" |
| Outlet Size | 1/4" |
| Exhaust Size | Built in Silencer |
| Cv (1-2) | 0.8 |
| Cv (1-4) | 0.6 |
| Cv (2-3) | 0.5 |
| Cv (4-5) | 1.1 |
| Voltage | NA |
| Solenoid Connection Type | NA |
| Status Indicator | Not Included |
| Status Indicator Connection Type | NA |
| Reset | Air Remote |
| Construction | Double Spool and Sleeve |
| Mounting | Base Mount |
| Ambient Temperature Range | 40 to 122 F (4 to 50 C) |
| Media Temperature Range | 40 to 175 F (4 to 80 C) |
| Flow Media | Filtered Air |
| Operating Pressure Max | 150 psi (10 bar) |
| Valve Body Material | Cast Aluminum |
| Poppet Material | Stainless Steel |
| Seal Material | Buna-N |
| Safety Category | Category 4 |
| PL Rating | PL e |
| Safety Integrity Level | SIL 3 |
| DGUV Certification | Yes |
| CE Certification | Yes |
| EAC Declaration | Yes |
| CSA/UL Certification | Yes |
+
