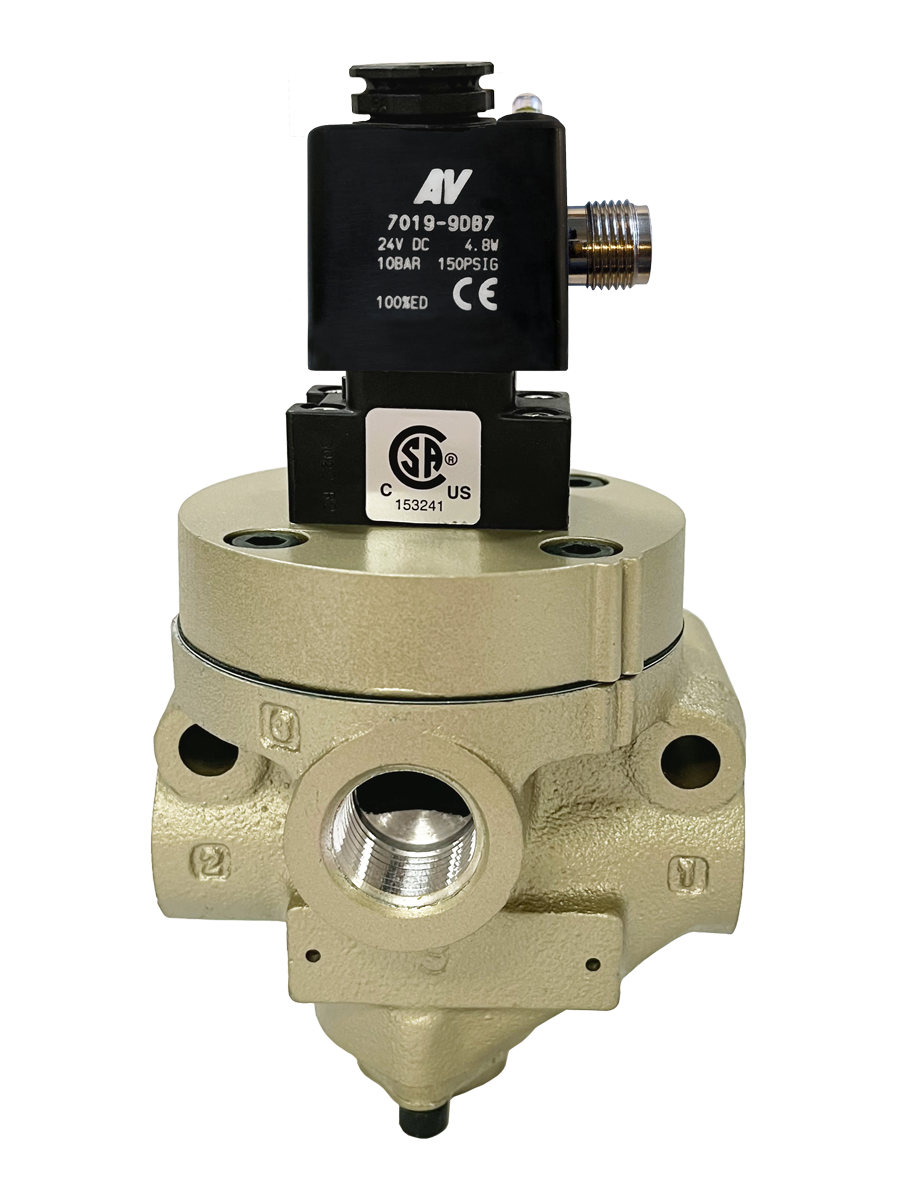

Low/High Temperatures, DIN & M12 Connection [21 Series] D2172B8061H-3
- Perpendicular Poppet Face Seals Creates High-Flow and Positive Sealing
- Differential Piston Design Delivers Fast and Consistent Response Times
- Overwhelming Shifting Forces Provides No-Stick Operation
- High Velocity Air Flow Across Poppet Seats Allows Self-Cleaning and Strong Dirt Tolerance
- Superior Internal Guidance System and Self-Compensating Seals Delivers Long-Life
Product Information
| Actuation | Electrical |
| Function | 2/2 |
| Inlet Pipe Size | 1-1/2" |
| Outlet Pipe Size | 1-1/2" |
| Default Position | Normally Open |
| Construction | Poppet |
| Mounting | Inline |
| Manual Override | Non-locking |
| Application | General |
| Thread Type | G |
| Ports 1-2 Flow (Nl/min) | 23000 |
| Pilot Type | External |
| Return | Spring |
| Voltage | 12 VDC |
| Duty Rating | Continous Duty |
| Power Consumption | 4.5 Watts |
| Connection | M12 |
| Ambient Temperature (Celcius) | -17 to 50 |
| Media Temperature (Celcius) | 4 to 80 |
| Fluid Media | Filtered Air |
| Operating Pressure | 30 to 150 psig (2 to 10 bar) |
| Operating Pressure (bar) | 2 to 10 |
| Pilot Supply Minimum | Must be equal to or greater than inlet pressure |
| Length (mm) | 168 |
| Width (mm) | 104 |
| Height (mm) | 270.4 |
| Weight (kg) | 5.0 |
| Valve Body Material | Cast Aluminum |
| Poppet/Spool Material | Aluminum and Stainless Steel |
| Seal Material | Fluorocarbon |
+
Low/High Temperatures, DIN & M12 Connection [21 Series]
D2172B8061H-3
Contact Us for a 3D Model
+
Low/High Temperatures, DIN & M12 Connection [21 Series]
D2172B8061H-3
Contact ROSS EUROPA for Ordering Information
+
