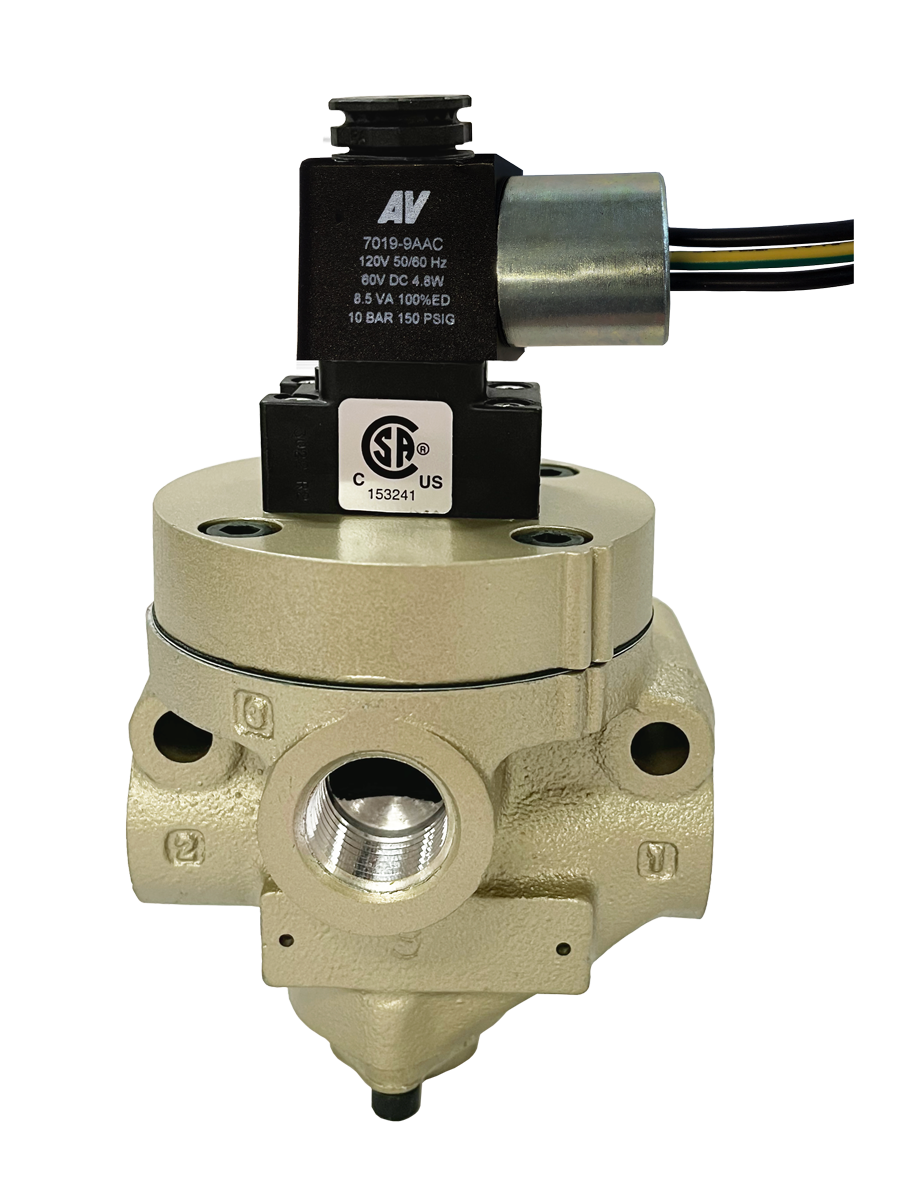

Low/High Temperatures, DIN & M12 Connection [21 Series] D2173B3052Y-6
- Perpendicular Poppet Face Seals Creates High-Flow and Positive Sealing
- Differential Piston Design Delivers Fast and Consistent Response Times
- Overwhelming Shifting Forces Provides No-Stick Operation
- High Velocity Air Flow Across Poppet Seats Allows Self-Cleaning and Strong Dirt Tolerance
- Superior Internal Guidance System and Self-Compensating Seals Delivers Long-Life
Product Information
| Actuation | Electrical |
| Function | 3/2 |
| Inlet Pipe Size | 3/8" |
| Exhaust Pipe Size | 1/2" |
| Outlet Pipe Size | 3/8" |
| Default Position | Normally Closed |
| Construction | Poppet |
| Mounting | Inline |
| Manual Override | Non-locking |
| Application | General |
| Thread Type | G |
| Ports 1-2 Flow (Nl/min) | 2500 |
| Ports 2-3 Flow (Nl/min) | 4400 |
| Pilot Type | External |
| Return | Spring |
| Voltage | 240 VAC |
| Duty Rating | Continous Duty |
| Power Consumption | 6.8 VA |
| Connection | 1/2" Conduit, 30" Leads |
| Ambient Temperature (Celcius) | -17 to 82 |
| Media Temperature (Celcius) | -17 to 150 |
| Fluid Media | Filtered Air |
| Operating Pressure | 30 to 150 psig (2 to 10 bar) |
| Operating Pressure (bar) | 2 to 10 |
| Pilot Supply Minimum | Must be equal to or greater than inlet pressure |
| Length (mm) | 90 |
| Width (mm) | 78 |
| Height (mm) | 253 |
| Weight (kg) | 0.9 |
| Valve Body Material | Cast Aluminum |
| Poppet/Spool Material | Aluminum and Stainless Steel |
| Seal Material | Buna-N |
+
Low/High Temperatures, DIN & M12 Connection [21 Series]
D2173B3052Y-6
Contact Us for a 3D Model
+
Low/High Temperatures, DIN & M12 Connection [21 Series]
D2173B3052Y-6
Contact ROSS EUROPA for Ordering Information
+
