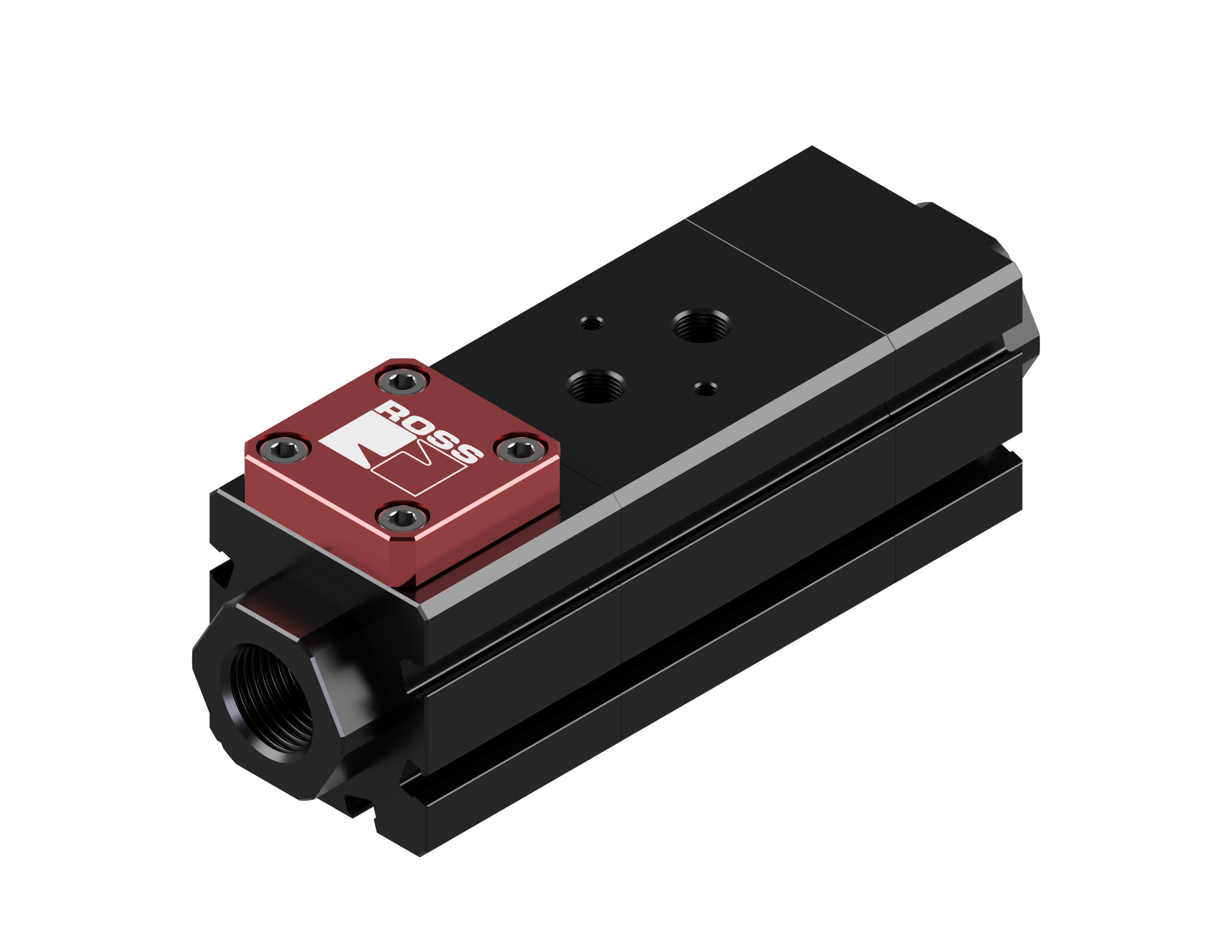

Coaxial Valves [CV10 Series] CV10253216
ROSS Coaxial Valves – Reliable, Versatile, and Efficient
ROSS Coaxial Valves are designed for demanding industrial applications where fast response times, high flow rates, and reliability are essential. They are available in three designs:
- Classic Design (DN10, DN15, DN25) – available as 2/2- or 3/2-way valves, either directl acting or externally controlled, offering flexible solutions for various applications.
- Compact Design (DN04) – are space-saving 2/2-way externally controlled valves, ideal for applications where installation space is limited.
- Modular Coaxial Valves – A flexible and expandable system for complex applications.
More details can be found on the Modular Coaxial Valves page.
For enhanced functionality, a wide range of Accessories for Coaxial Valves is available.
Key Features & Benefits
- 40% Higher Flow Rate: The innovative coaxial design allows for significantly increased flow rates, improving system efficiency and reducing energy consumption.
- Up to 4 Times Longer Service Life: Built to withstand demanding environments, ROSS Coaxial Valves offer up to four times the operational lifespan compared to traditional valves.
- Fast Switching: These valves feature quick switching capabilities, providing rapid response times in automation systems, ensuring precision control during critical processes.
- Insensitive to Dirt: Coaxial Valves are designed to be highly resistant to dirt and contaminants, ensuring stable performance and reliability even in harsh environments.
- Valve Seat Replacement During Installation: The valve seat can be easily replaced without interrupting production, leading to minimal downtime and enhancing operational efficiency.
- Versatile Use for All Media: Whether it’s neutral gases, liquids, highly viscous fluids, or contaminated media, the ROSS Coaxial Valve is adaptable to a wide variety of applications.
- Modular and Custom Designs Available: ROSS provides modular solutions and can customize valves based on the specific needs of your application, offering tailored functionality for various industries.
Product Information
| Valve Type | Coaxial Valve |
| Series | CV10 |
| Media | liquid, highly viscous, contaminated and neutral gases |
| Actuation | Externally Controlled |
| Nominal Diameter | DN25 |
| Function | 2/2-Way |
| Default Position | Normally Closed |
| Thread Type | NPT |
| Flow (m³/h) | 19.7 Kv (22.95 Cv) |
| Pressure Range | 0-64 Bar (0-960 psi) |
| Back Pressure | max. 0 to 16 bar (0-240 psi) |
| Ambient Temperature | -10°C to +80°C (-4°F to +176°F) |
| Media Temperature | -10°C to +130°C (-4°F to +266°F) |
| Pneumatic Drive - Control | double-acting with spring return (spring made of 1.4310), preferably controlled via 5/2-way pilot valve |
| Pneumatic Drive - Operating Pressure | 3 to 10 bar |
| Pneumatic Drive - Air Consumption | 7cm³-10cm³/stroke |
| Pneumatic Drive - Cycle time | adjustable via 20 - 3000 ms exhaust throttle |
| Pneumatic Drive - Flow Media | filtered air, neutral gases |
| Pneumatic Drive - Control Connections Cylinder | G 1/8 (port size 2 + 4) |
| Pneumatic Drive - Control Connections for Pilot Valve | Adapter Plate NAMUR |
| Valve Seat Material | PTFE |
| Sealing Material | FKM |
| Valve Body Material | Stainless Steel |
| Control Tube Material | Stainless Steel |
| Weight | 4.5 kg (9.9 lb ) |
+
Coaxial Valves [CV10 Series]
CV10253216
Contact Us for a 3D Model
+
Coaxial Valves [CV10 Series]
CV10253216
Contact ROSS EUROPA for Ordering Information
+
